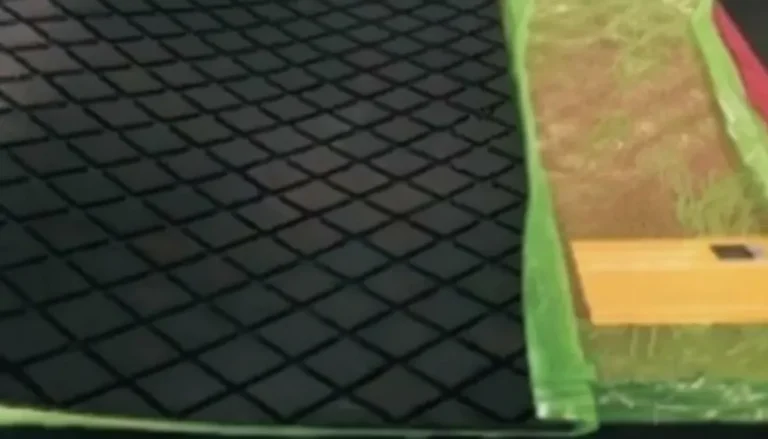

Diamond-Shaped Cold Adhesive Sheet
- Cold adhesive bonding technology — no vulcanization equipment or factory processing required, enabling fast on-site installation with minimal downtime;
- Raised diamond-pattern surface delivers superior grip on drive pulleys, preventing belt slippage and reducing lateral deviation under load;
- High-density rubber compound with excellent elasticity and anti-adhesion properties, resisting material buildup on the pulley surface in dusty and wet conditions;
- Service life several times that of conventional cast rubber lagging, significantly reducing replacement frequency and long-term maintenance cost;
- Cost-effective alternative to flat rubber sheets — widely adopted across coal mining, ports, metallurgy, and power generation for reliable drive pulley protection.
Product Introduction

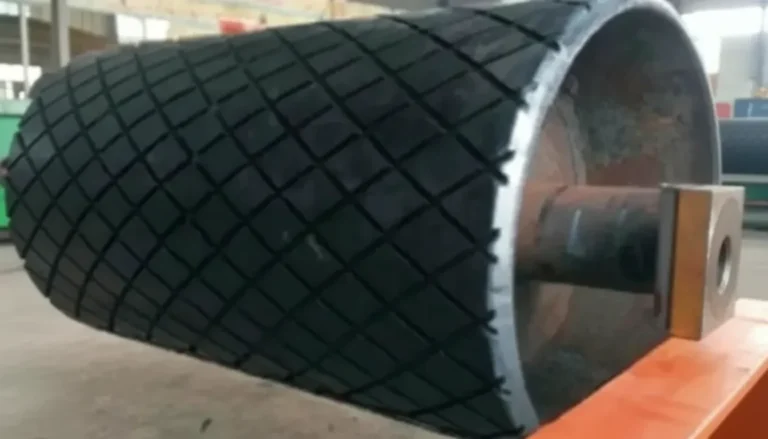

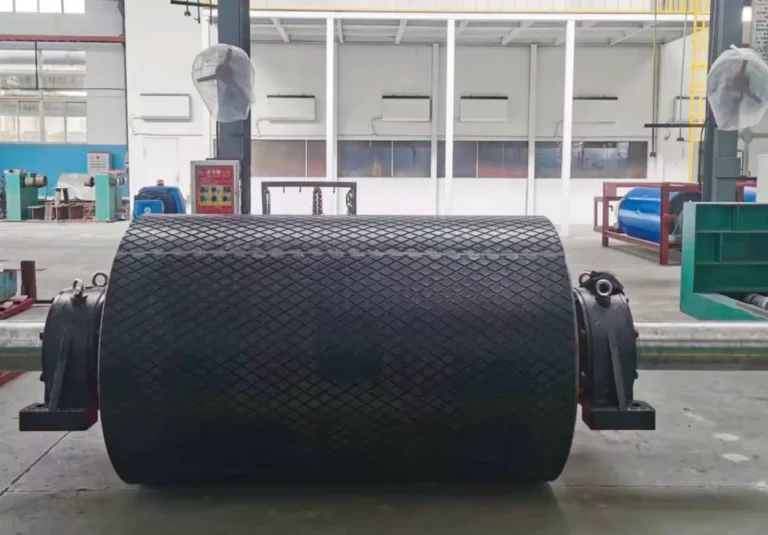

Diamond-shaped cold adhesive sheets are specifically designed for lagging on drive pulleys in belt conveyor systems. The raised diamond-pattern surface creates consistent, high-friction contact between the pulley and the conveyor belt, preventing material buildup on the drum surface and significantly reducing the risk of belt deviation during operation.
Compared to flat rubber lagging sheets, diamond-shaped sheets offer superior grip geometry and better self-cleaning characteristics — making them one of the most widely adopted and cost-effective pulley lagging solutions across the bulk material handling industry. For operations that need reliable performance without the lead time and cost of hot vulcanization, this is the practical, proven choice.
On-Site Cold Bonding Installation
No vulcanization equipment needed. Fast field application with minimal conveyor downtime.
Superior Grip Through Diamond Geometry
A raised profile that prevents slippage, resists material buildup, and supports belt tracking.
Product Structure & Working Principle
From surface grip to bonding interface — how every layer of this sheet earns its place.
Diamond-Profile Surface Layer
The outermost layer of the sheet features a precisely formed diamond-pattern profile across its entire surface.
High-Density Rubber Compound Body
Beneath the diamond surface layer sits the main rubber body, formulated from a high-density compound with high elasticity and strong anti-adhesion characteristics.
Cold Adhesive Bonding Interface
The underside of each sheet is prepared for cold adhesive application, achieving a rated adhesion force of 12.6 N/mm between the lagging sheet and the pulley drum surface.
How It Corrects Belt Deviation
Belt deviation most commonly originates or worsens at the drive pulley, where tension and friction forces are highest.
Performance Comparison
Cold Adhesive vs. Cast Rubber
Seven key performance parameters, side by side. See why diamond-shaped cold adhesive lagging outperforms conventional cast rubber across every metric that matters on the conveyor line.
|
Parameter
|
★ Recommended
MinsenMine
Diamond-ShapedCold Adhesive Sheet On-site bonding |
Traditional
Cast Rubber
Lagging Factory vulcanization |
|---|---|---|
Adhesion Force with Roller |
12.6 N/mm
|
3–8 N/mm |
Vulcanization Pressure |
50 kg/cm² |
6–8 kg/cm² |
Wear Resistance |
|
|
Service Life |
Several times that of cast rubber
|
Short lifespan
|
Friction Coefficient |
High — reduces belt stress on tape |
Low — increases stress on belt |
Rubber Hardness & Elasticity |
High elasticity, excellent anti-adhesion
|
Ages quickly, loses material adhesion
|
Installation Method |
On-site, fast, low overall cost
|
Factory vulcanization required — complex & costly
|
Custom sheet dimensions available to suit standard and non-standard drive pulley diameters and belt widths. Contact our engineering team for product specifications and installation guidance.
Typical Industries and Sectors
Diamond-shaped cold adhesive sheets are suitable for drive pulley lagging on belt conveyor systems operating across a wide range of industries and environments:
Mining and Mineral Processing
Heavy Duty Strength for Harsh Underground Operations
Port and Bulk Logistics
Efficient Flow for Continuous Material Movement
Cement and Building Materials
Enduring Performance Under Constant Heavy Loads
Power Generation and Energy Plants
Reliable Conveying for Coal and Biomass Systems
Metallurgy and Heavy Industry
High Tensile Control for Industrial Production Lines
Chemical and Industrial Manufacturing
Resistant Materials for Corrosive and Complex Media
Certified to the Highest Industry Standards
Every certification we hold is a commitment we made to your safety and confidence.
At MinsenMine, rubber lagging is not a secondary product line — it is a core part of what we manufacture and stand behind. Our diamond-shaped cold adhesive sheets are produced to consistent material specifications with quality control at every stage of production.
Our Certifications Include:
MA Certification (Mine Product Safety Mark)
Issued by China’s National Safety Mark Center. The first belt deviation correction device of its type in China to receive this designation, confirming full compliance with national safety standards for underground and surface mine applications.
ISO 9001 Quality Management System
Our production, inspection, and delivery processes operate under a certified quality management framework, ensuring consistency from the first unit to the thousandth.
SGS Factory Certification
International third-party verification of our manufacturing facility, processes, and product quality standards.
Join Our Global Distributor Network Today
Precision Starts on the Production Floor
Ready to Specify?
Talk to a MinsenMine rubber products specialist. Whether you are replacing worn lagging on an existing pulley or specifying lagging for a new conveyor installation, we will match the right product to your application and provide full technical support through to installation.
- High-density rubber compound selected for maximum wear resistance and long field service life
- Strong cold adhesive bond performance rated at 12.6 N/mm — engineered for reliable adhesion without factory vulcanization
- Manufactured under ISO 9001 certified quality management system
- Available with full technical documentation and installation guidance
