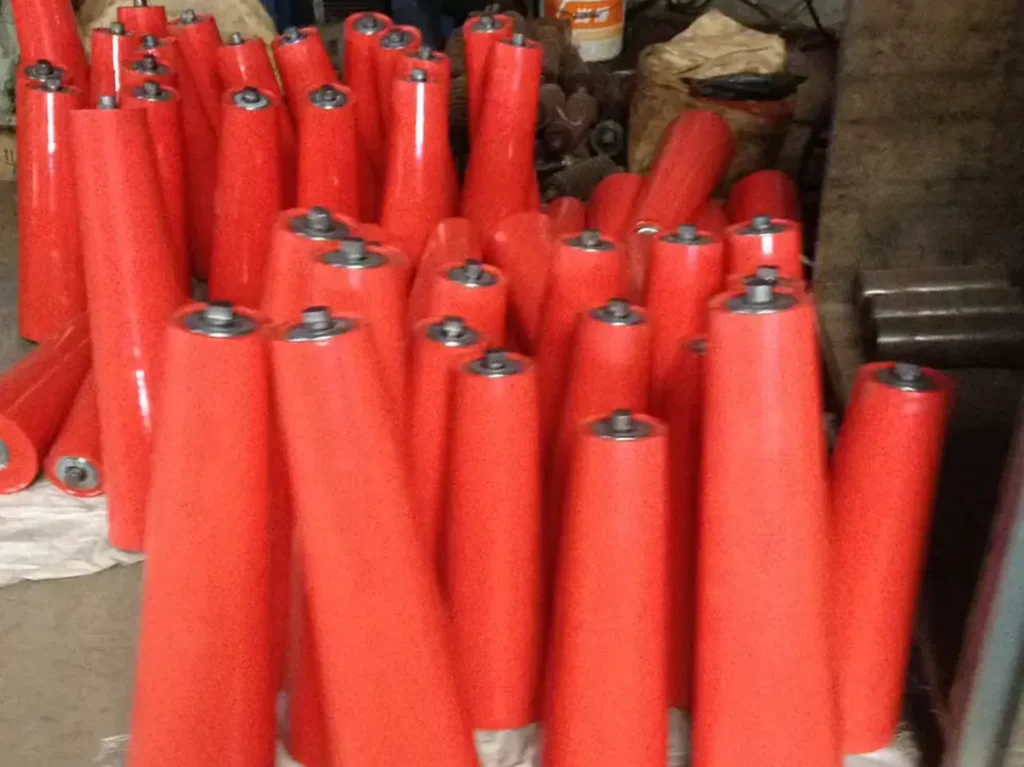

Conical Polyurethane Idlers
- Conical geometry generates a passive self-centering force on the conveyor belt — correcting lateral drift tendency without sensors, actuators, or operator intervention
- Extremely low friction coefficient combined with excellent self-lubricating properties eliminates the need for grease injection and prevents belt underside wear accumulation across the full idler contact surface
- Anti-static, flame-retardant, and anti-aging compound formulation makes conical polyurethane idlers compliant with underground mine safety requirements and suitable for fire-risk environments
- Broad operating temperature range of −40°C to +90°C — stable polyurethane shell performance across cold outdoor winter conditions and high-temperature industrial process environments
- Resistant to acid, alkali, and organic solvent chemical exposure — the appropriate specification for chemical processing, mineral leaching, and corrosive material conveyor applications
- Lightweight construction with no maintenance requirement across the service life — reduces installation labour, ongoing maintenance cost, and drive motor load per idler position
Product Introduction

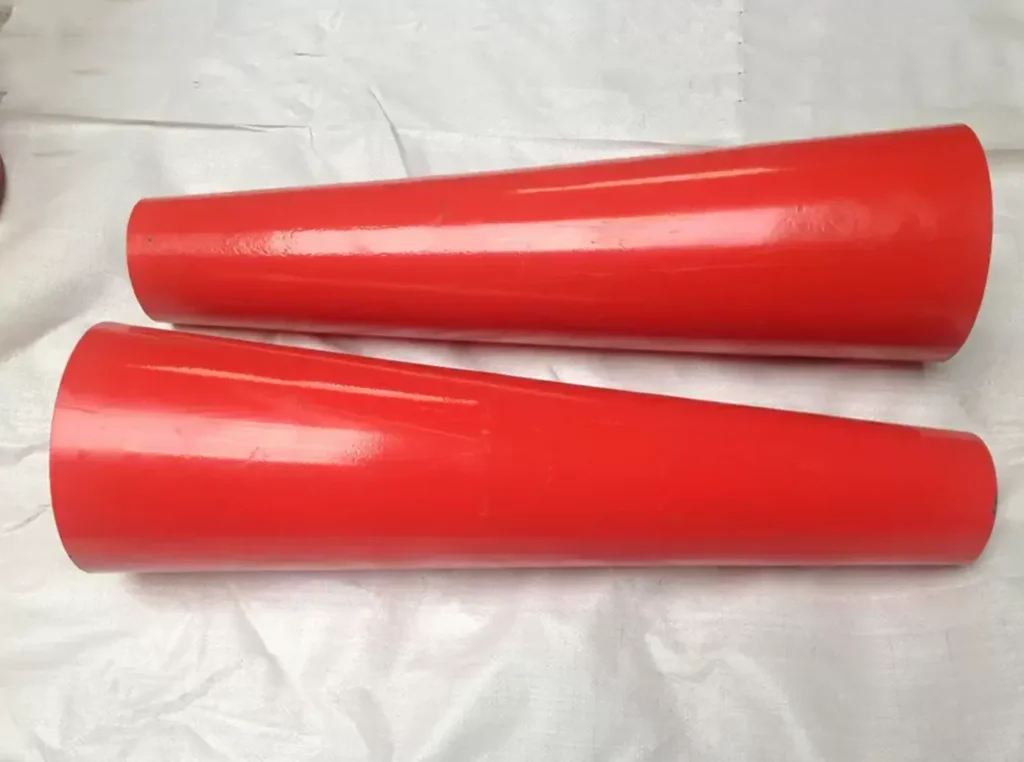

Conical polyurethane idlers are a specialized idler roller configuration in which the roller shell is tapered — larger in diameter at the outer end, smaller toward the centre — rather than cylindrical. This conical geometry is not cosmetic. It is functional: as the conveyor belt runs across a pair of conical idlers mounted symmetrically on the conveyor frame, the differential surface speed between the larger outer diameter and the smaller inner diameter generates a passive centering force on the belt. When the belt drifts laterally — toward one side of the conveyor — it encounters a higher effective surface speed on the side it has drifted toward, which produces a corrective force that moves the belt back toward center without any mechanical intervention.
Conical Self-Aligning Geometry
Tapered shell profile generates a passive corrective force whenever the belt drifts laterally — continuously returning the belt to center without sensors, actuators, or manual adjustment.
Multi-Resistance Polyurethane Compound
Anti-static, flame-retardant, anti-aging, and resistant to acid, alkali, and organic solvents — a single compound specification that covers the full range of demanding industrial and underground mine environments.
Self-Lubricating & Zero Maintenance
No grease injection required across the full service life. Self-lubricating polyurethane shell combined with sealed bearings eliminates scheduled lubrication entirely — reducing maintenance labour and operating cost.
3–5× Longer Service Life Than Steel
Polyurethane shell abrasion resistance and low rolling friction dramatically extend service intervals — outlasting standard steel idler rollers by 3 to 5 times in equivalent bulk material handling conditions.
Product Structure & Working Principle
Conical taper, polyurethane compound, sealed bearings — how the geometry and material work together to deliver self-aligning belt support.
Conical Shell Geometry
The tapered shell profile creates a differential surface velocity across the belt contact width.
Multi-Resistance Polyurethane Compound
The shell compound is formulated for anti-static performance, flame retardancy, anti-aging stability, and resistance to acid, alkali, and organic solvent chemical exposure.
Wide Temperature Operating Range
The polyurethane shell maintains its mechanical properties, dimensional stability, and low-friction surface characteristics across an operating temperature range of −40°C to +90°C.
Self-Lubricating, Lightweight, Zero Maintenance
The polyurethane shell material provides inherent lubrication at the belt contact surface — no grease injection required across the full service life.
Product Advantages
Why Choose a Conical Polyurethane Idler
Conical polyurethane idlers do more than support the belt — they actively correct its path, protect its surface, and outlast steel rollers by 3 to 5 times. MinsenMine conical idlers are engineered to deliver on every one of these demands.
|
Performance Area
|
★ MinsenMine
Key Benefit
Conical Polyurethane Idler
What you get on every installation
|
Without It
Common Problems
Risks of a poorly specified roller
|
|---|---|---|
Belt Self-Alignment |
Passive conical geometry — continuous belt centering
|
Belt drift — edge damage & spillage
|
Service Life |
3–5× steel
|
Wears quickly
|
Rolling Friction |
Very low — protects belt cover & saves energy
|
Higher drag — accelerates belt wear
|
Lubrication |
Self-lubricating — zero grease maintenance
|
Periodic greasing required
|
Chemical Resistance |
Acid, alkali & solvent
|
Corrodes rapidly
|
Anti-Static & Flame Retardant |
Compound rated — suitable for underground use
|
Not inherent — not mine-rated
|
Operating Temperature |
−40°C to +90°C — all-climate capable
|
Limited by grease spec at low temp
|
Noise & Vibration |
Low noise — PU shell dampens impact
|
Steel-to-steel contact — high noise output
|
MinsenMine conical polyurethane idlers are available in standard and custom taper angles, face widths, and anti-static or flame-retardant compound specifications. Contact our technical team to match the correct configuration to your belt width, conveyor layout, and operating environment.
Industries and Operating Environments
Not every idler position needs self-alignment geometry — but where belt drift is the problem, conical idlers are the solution.
Mining and Mineral Processing
Heavy Duty Strength for Harsh Underground Operations
Port and Bulk Logistics
Efficient Flow for Continuous Material Movement
Cement and Building Materials
Enduring Performance Under Constant Heavy Loads
Power Generation and Energy Plants
Reliable Conveying for Coal and Biomass Systems
Metallurgy and Heavy Industry
High Tensile Control for Industrial Production Lines
Chemical and Industrial Manufacturing
Resistant Materials for Corrosive and Complex Media
Built to Standard. Verified by Independent Certification.
Every conical polyurethane idler we supply is manufactured under a certified quality management framework — not self-declared compliance.
The performance advantages of conical polyurethane idlers depend entirely on the consistency of the polyurethane compound formulation, the accuracy of the conical taper geometry, and the integrity of the bearing and seal assembly. MinsenMine conical polyurethane idlers are produced with controlled material and dimensional specifications at every production stage, independently verified by third-party certification bodies.
Our Certifications Include:
MA Certification (Mine Product Safety Mark)
Issued by China’s National Safety Mark Center. The first belt deviation correction device of its type in China to receive this designation, confirming full compliance with national safety standards for underground and surface mine applications.
ISO 9001 Quality Management System
Our production, inspection, and delivery processes operate under a certified quality management framework, ensuring consistency from the first unit to the thousandth.
SGS Factory Certification
International third-party verification of our manufacturing facility, processes, and product quality standards.
Join Our Global Distributor Network Today
Precision Starts on the Production Floor
Specify Conical Polyurethane Idlers for Your Conveyor System
Talk to a MinsenMine idler specialist — taper angle selection, mounting position, and full conveyor idler schedules.
- Standard and custom taper angles and face widths available across all common belt widths
- Anti-static and flame-retardant compound specification for underground and fire-risk applications
- Full technical documentation, compound certification, and installation guidance provided
- ISO 9001 certified production with independent SGS factory verification
